Product Name:

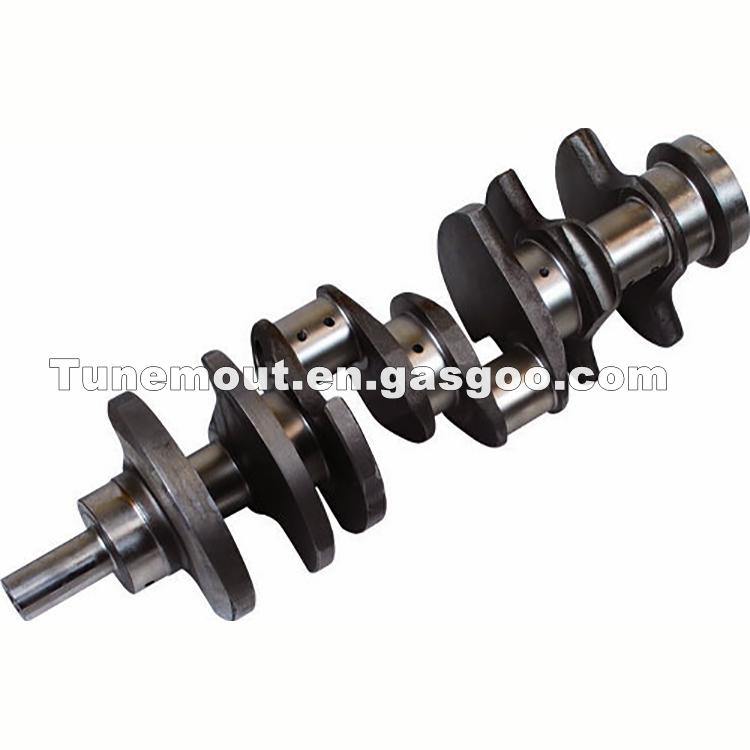

Racing Forged 4340 Crankshaft For Isuzu 4JJ1 Crankshaft
Product Attribute:
Cold Style:Cold Style
Application:
ISUZU DMAX
Product Description:
For Isuzu 4JJ1 Crankshaft Specifications
|
Brand:Adracing |
|
Application(s) |
For Isuzu 4JJ1 Crankshaft |
|
Engine(s) |
4JJ1 |
|
Material |
Billet 4340 Steel |
|
Stoker |
104mm |
|
Main Journal Diameter |
70mm |
|
Rod Journal Diameter |
53mm |
Technical Features
- Full CNC Machining
- Multi-step heat treatment process
- Knife-edged counterweights
- Gun drilled crank pin and counterweights to reduce weight and rotating mass
- Micro-polishing for longer bearing life
- Heating treatment:HRC34-38
- Peening treatment will be done after balance weight
- magnetic flaw detecting will be done according to standard JB/76729-93
Difference between Forged steel crankshaft and billet crankshaft:
- Forged steel crankshaft need to machine balance hole to keep good balance result
- Billet Crankshaft can get good balance by different design on counterweight. and Surface on counterweight will be more beautiful
Custom Service
- Our main business is to supply customized service
- we supply customized service based on your sample or drawing
- Price can be estimated if you can send Stroke--rod journal--rod journal width--main journal--main journal width--total length--fan plate bore--width between fan plate bore and photo
Delivery Time
- If the goods are in stock,the delivery time is 1-3 days
- If the goods are not in stock,the delivery time is 80-90 days
